Welfare Building Extension
Architectural Proposal
Welfare Building Extension
Proposed internal refurbishment & extension to provide improved staff welfare facilities
Project Brief
Scope
Refurbishment of existing welfare building & extension to provide improved staff facilities including canteen, meeting rooms, changing areas and office space.
Requirements
- • Improved staff amenities
- • Integration with existing building
- • Energy-efficient design
- • Material options for consideration
Investment Analysis
Wall cost comparison for material upgrade options
Kingspan & Light Millboard
Kingspan cladding with light millboard composite cladding
Baseline Option
Key Features:
- Kingspan insulated cladding system
- Light millboard composite detailing
- Excellent thermal performance
Render Block & Dark Millboard
Render block with quoins and dark millboard composite cladding
Wall Cost
Key Features:
- Smooth render block construction
- Decorative quoins at corners
- Dark millboard composite cladding
Stone & Dark Millboard
Stone finish with dark large quoins and dark millboard composite cladding
Wall Cost
Key Features:
- Premium stone finish cladding
- Dark large decorative quoins
- Dark millboard composite detailing
Sandstone & Light Millboard
Sandstone finish to suit main distillery with light millboard composite cladding and quoins
Wall Cost
Key Features:
- Sandstone finish matching main distillery
- Light millboard composite cladding
- Decorative quoin detailing
Stone Front & Kingspan Back
Stone finish front elevation with Kingspan insulated cladding system at rear
Wall Cost
Key Features:
- Premium stone finish front elevation
- Kingspan insulated cladding system (rear)
Material Comparison
Compare different material options for the welfare building extension
Select Viewpoint

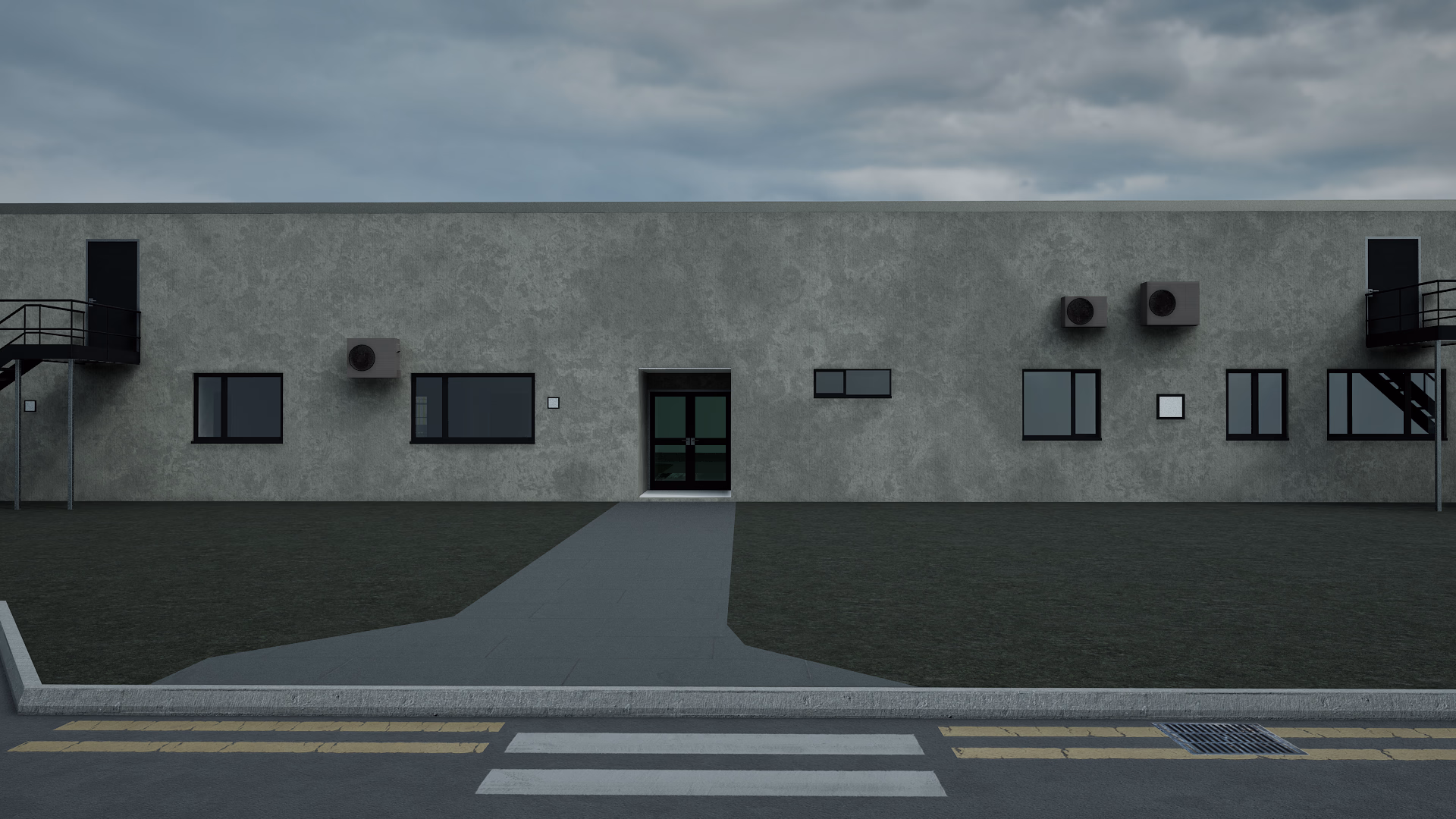

Main Entrance
Corner Perspective

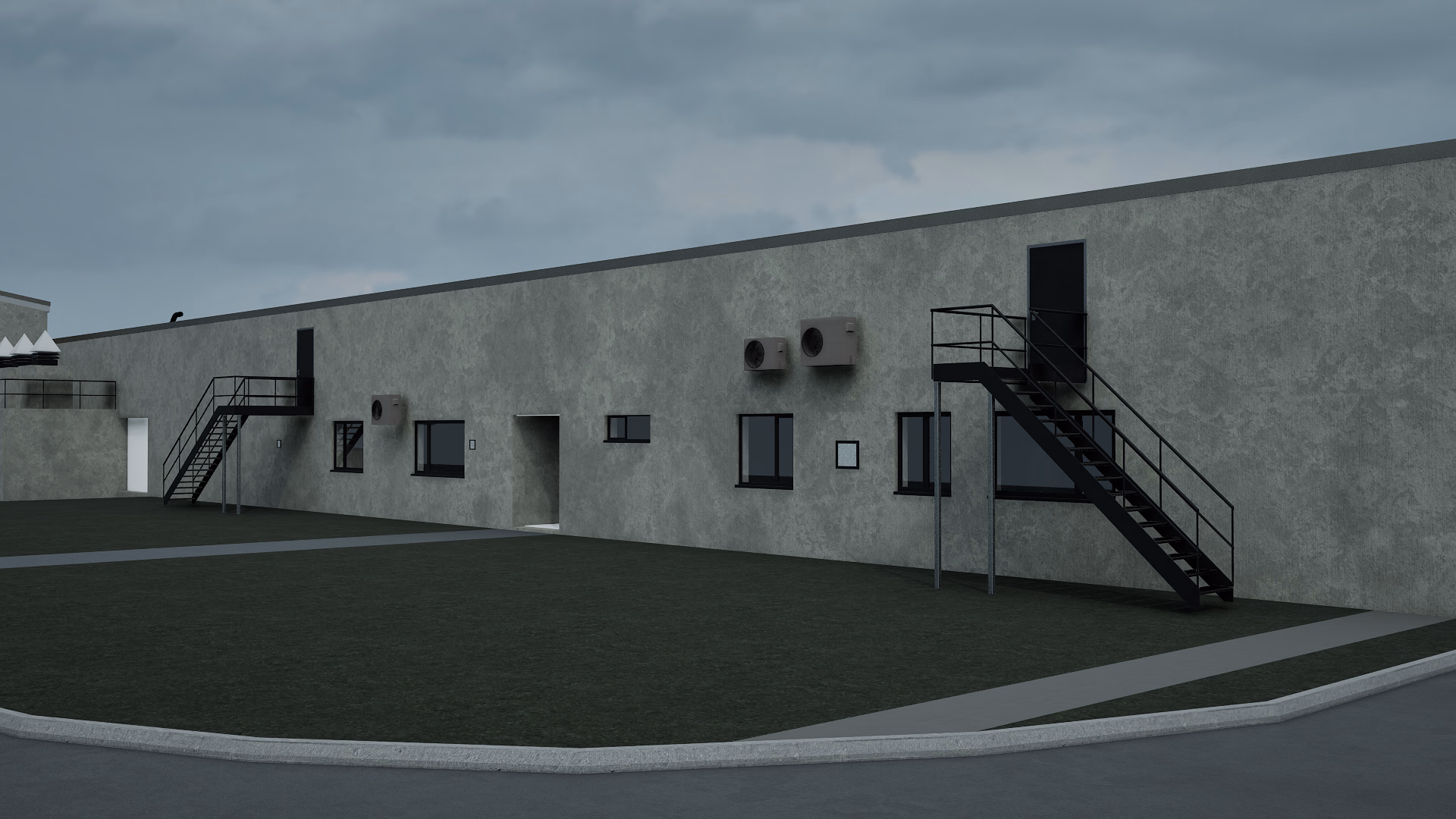

Street-Facing Elevation

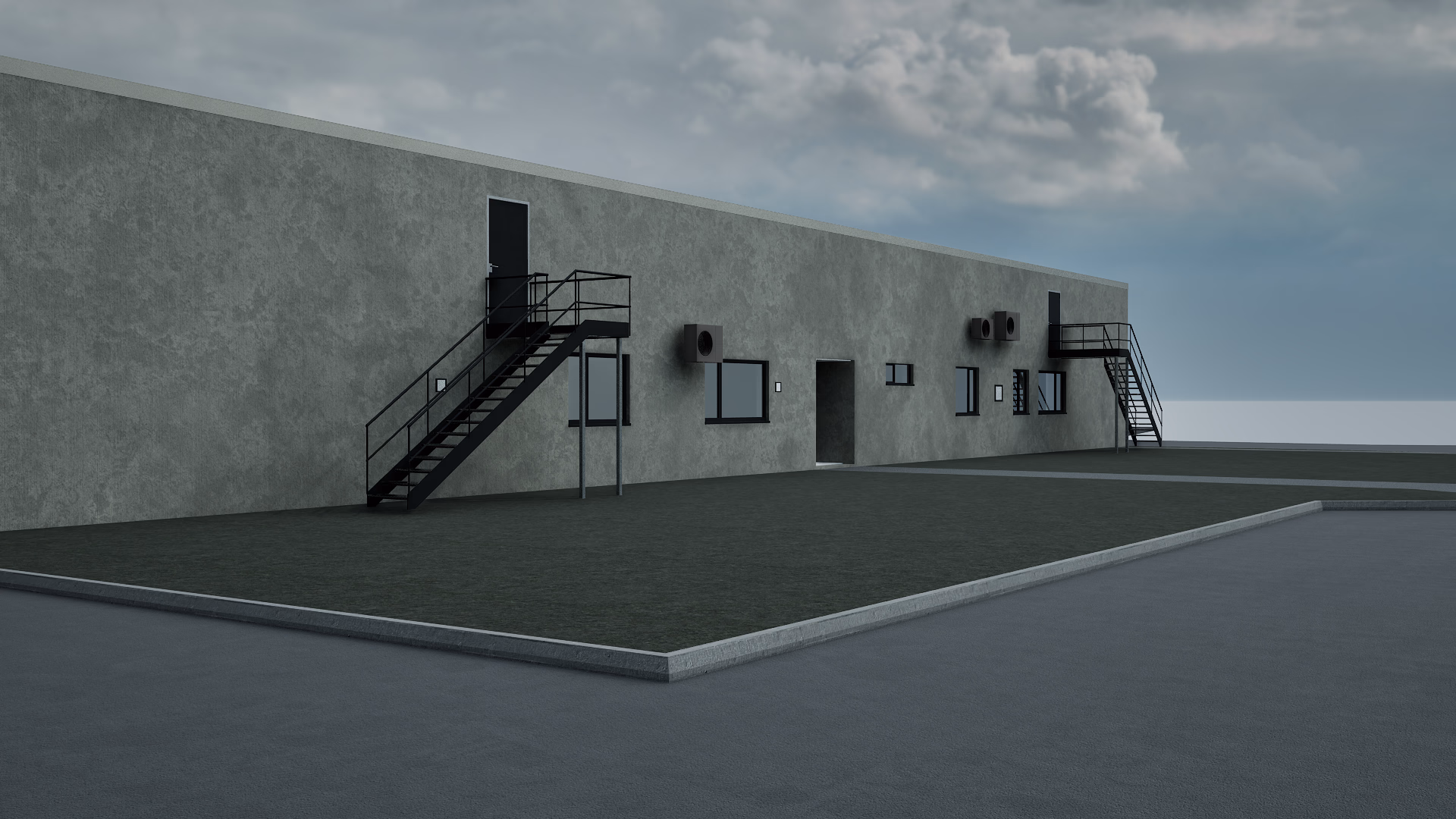

Side Elevation

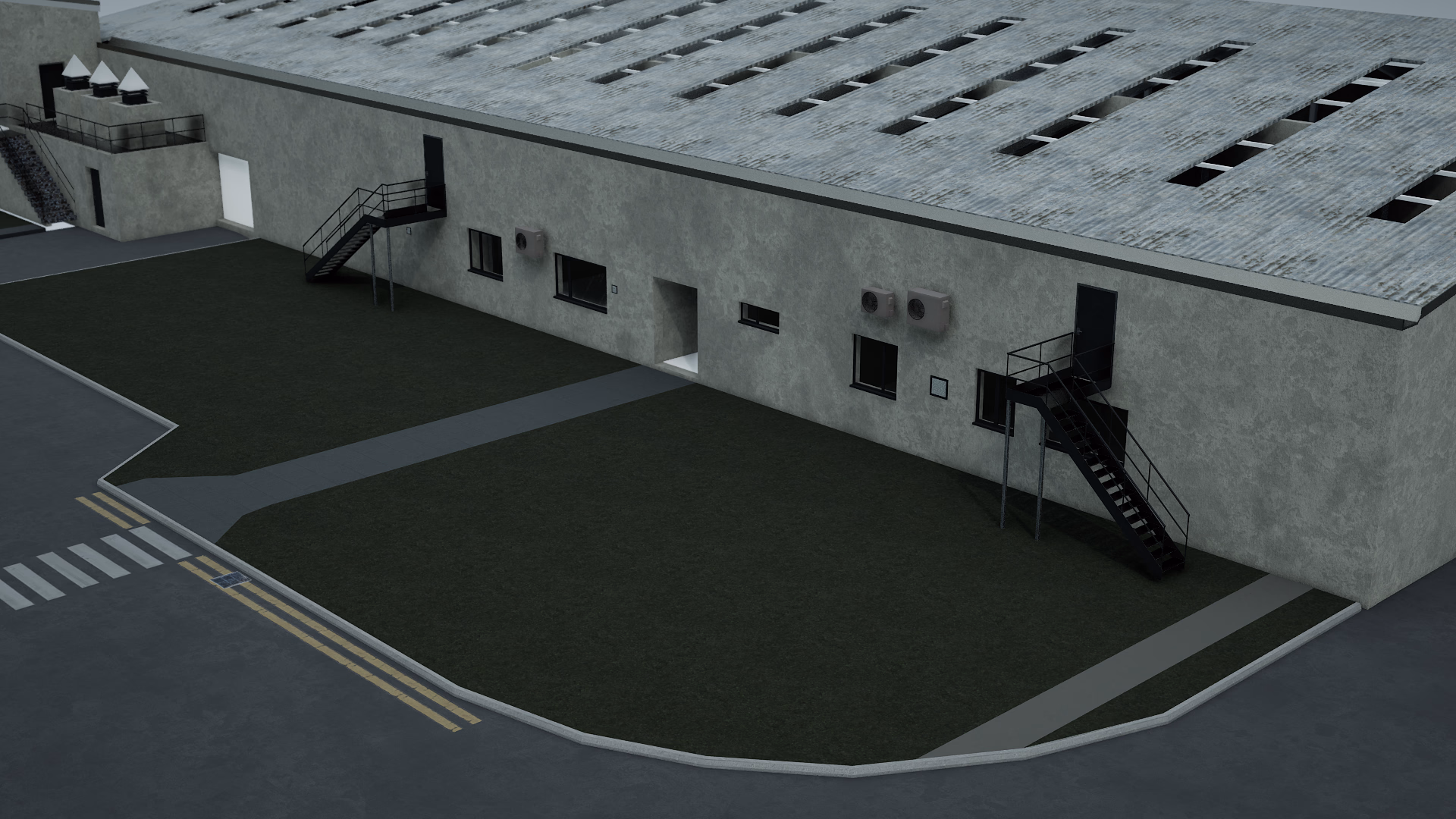

Aerial Three-Quarter View

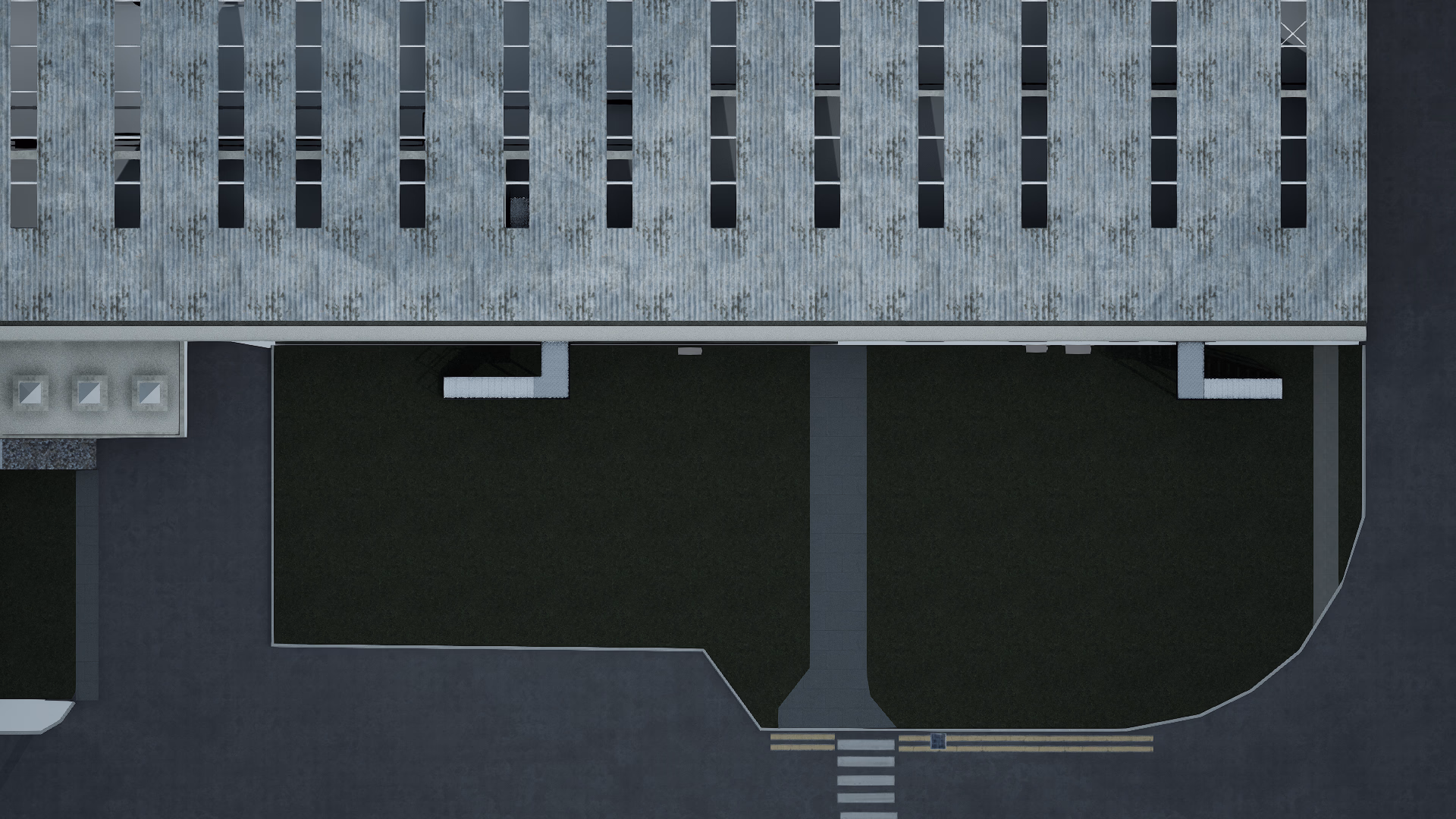

Top-Down Site Plan
Prepared by
Download Images
Download high-quality images for presentation, review, or archive purposes
Downloads all images from all design options in organized folders
Existing
Current Building
Option 1
Kingspan & Light Millboard
Option 2
Render Block & Dark Millboard
Option 3
Stone & Dark Millboard
Option 4
Sandstone & Light Millboard
Option 5
Stone Front & Kingspan Back
